Branch Outlet

Branch Outlet

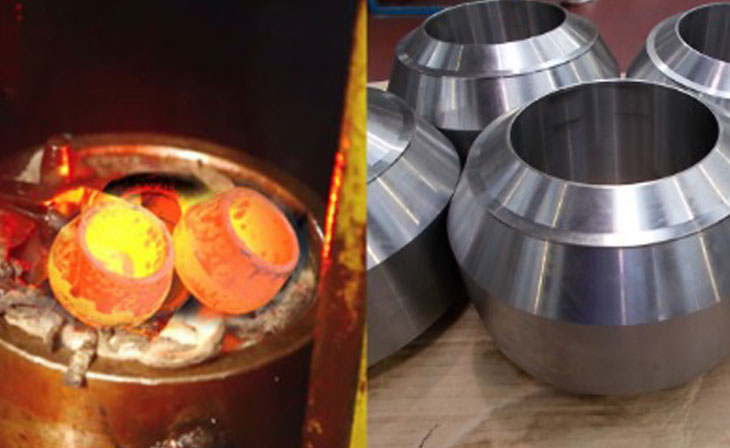

 Ritinox Overseas LLP is a leading manufacturer of branch fitting, buttweld pipe oulets, socket weld and threaded pipe oulets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe oulets such as Welding Outlet, Socket Outlet, Threading Outlet, Lateral Outlet, Elbow Outlet, Nipple Outlet and Sweep Outlet. We can also manufacture and supply forged flanged outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow oulets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe oulet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.

The materials we use are as follows:

Nickel Alloy ASTM / ASME B/SB 564 UNS N02200 (NICKEL 200), UNS N04400 (MONEL 400), UNS N08825 INCOLOY (825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N010276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY 20 / 20 CB 3)
Copper Alloy ASTM / ASME B/SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600,ASTM / ASME B/SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex and Super Duplex Steel ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.
Carbon Steel ASTM / ASME A/SA 105.
Low Temp Carbon Steel ASTM / ASME A/SA 350 LF 2.
High Yield Carbon Steel ASTM / ASME A/SA694 X55, X60, X65, X70
Alloy Steel ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
Titanium ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
